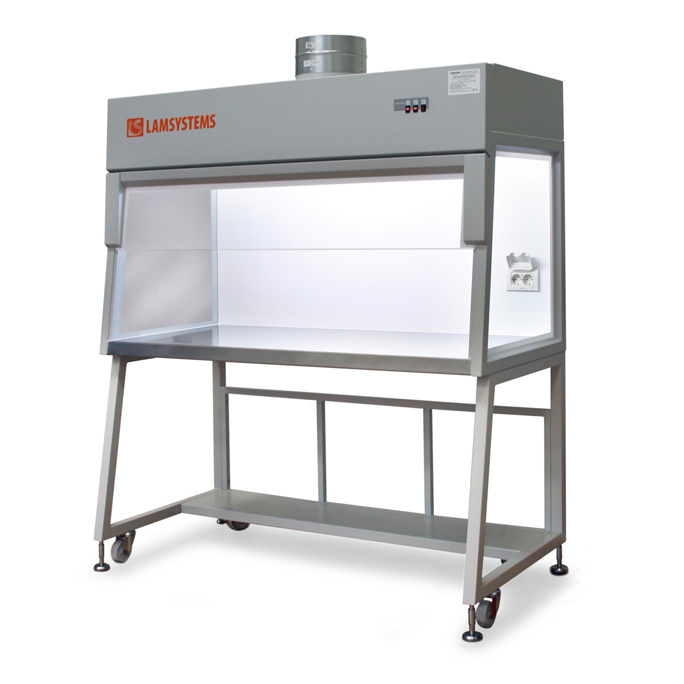

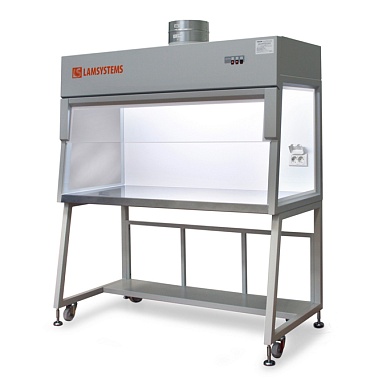

FUME HOOD SHV-1,5-“Laminar-S.”
Fume Hood SHV-1,5-“Laminar-S.” removes chemically harmful and low-toxic materials from the working zone providing operator’s protection in laboratories with different profiles.
Application
-
Fume hoods are designed for integrated use with an external exhaust system.
-
Fume hoods are used for research and other works connected with generation and expansion of low-toxic fumes and gases hazardous to the human health, for work with substances that require active removal of incidental products from the working zone.
- Fume Hoods are not designed for work with hazardous and potentially hazardous pathogenic agents and microorganisms.
Main Features
- All-metal frame;
- Adjustable stand allows to horizontally level the work surface;
- Illumination lamp with protection screen located inside the working chamber;
- Electrical sockets inside the cabinet for connection of additional tools;
- All metal surfaces powder coated and resistant to disinfectants;
- Front window – tempered glass, can be fixed in two positions;
- Back-pressure valve prevents air from flowing back into the chamber;
- Flange adapter for connection to the external exhaust system, diameter 250mm;
- Side surfaces of the chamber are made from tempered glass.
FUME HOOD SHV-1,5-“Laminar-S.”
Fume Hood SHV-1,5-“Laminar-S.” removes chemically harmful and low-toxic materials from the working zone providing operator’s protection in laboratories with different profiles.
Application
-
Fume hoods are designed for integrated use with an external exhaust system.
-
Fume hoods are used for research and other works connected with generation and expansion of low-toxic fumes and gases hazardous to the human health, for work with substances that require active removal of incidental products from the working zone.
- Fume Hoods are not designed for work with hazardous and potentially hazardous pathogenic agents and microorganisms.
Main Features
- All-metal frame;
- Adjustable stand allows to horizontally level the work surface;
- Illumination lamp with protection screen located inside the working chamber;
- Electrical sockets inside the cabinet for connection of additional tools;
- All metal surfaces powder coated and resistant to disinfectants;
- Front window – tempered glass, can be fixed in two positions;
- Back-pressure valve prevents air from flowing back into the chamber;
- Flange adapter for connection to the external exhaust system, diameter 250mm;
- Side surfaces of the chamber are made from tempered glass.
Main parameters and dimensions
FUME HOOD SHV-1,5-“Laminar-S.”
Article | 1Е-E.001-15.0 |
Dimensions of the assembled cabinet with stand, mm (WхDхH) | 1500х770х1880 |
Dimensions of the work chamber, mm (WхDхH) | 1500х710х1110 |
Mass of assembled cabinet with the stand, kg, not more than | 126 |
Input power of the cabinet, W, not more than (exclusively of the load on the built-in outlets) | 75 |
Input power of the fan, W, not more than | 27 |
Maximum load allowed on the sockets, W | 1000 |
Luminance level in the working zone, lux, not less than | 1000 |
Airflow outflow volume, m3/hr, not less than | 450* |
* - * Connection to the active exhaust system with efficiency not less than 885 m3/h is required to maintain average inflow speed not less than 0,5 m/s

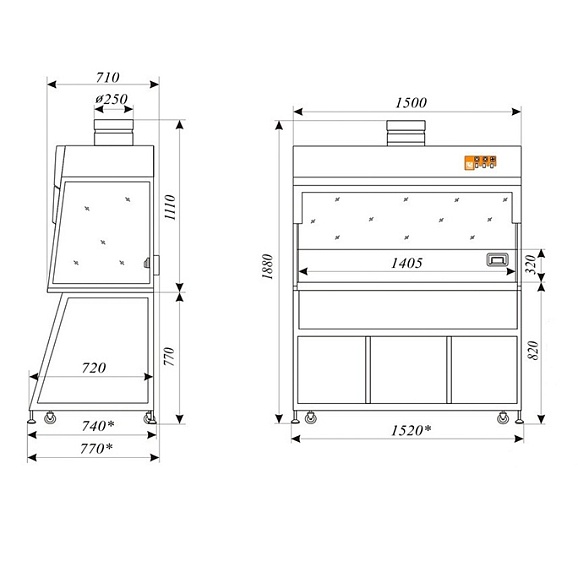

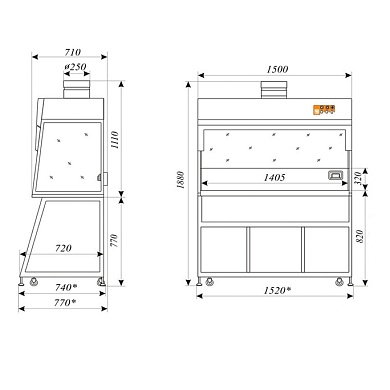

Dimensional drawing

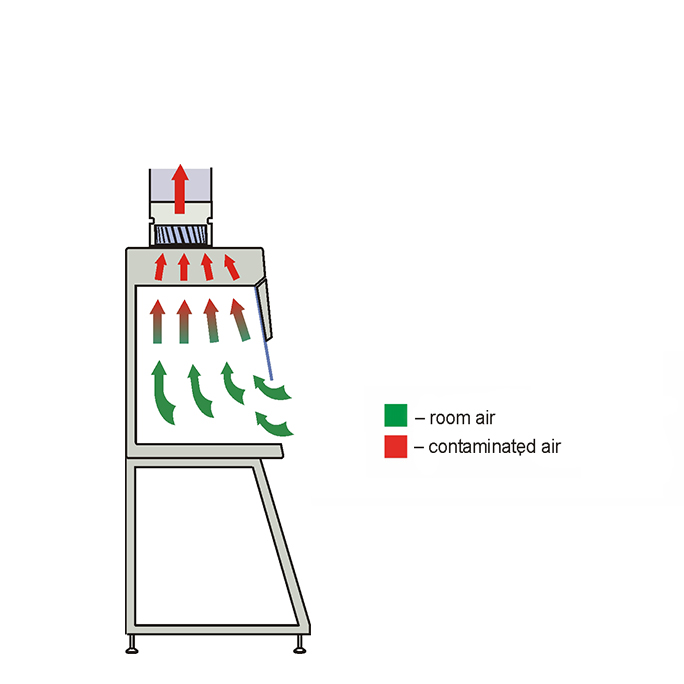

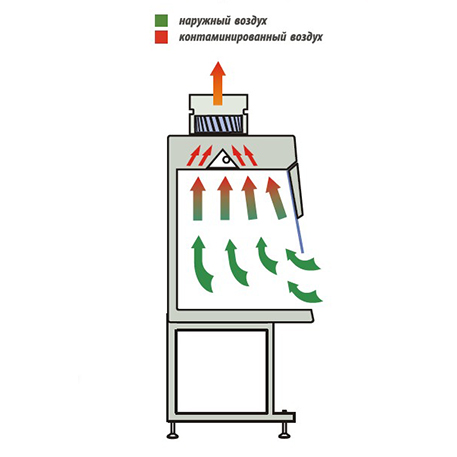

Air flow scheme
Standard Configuration
