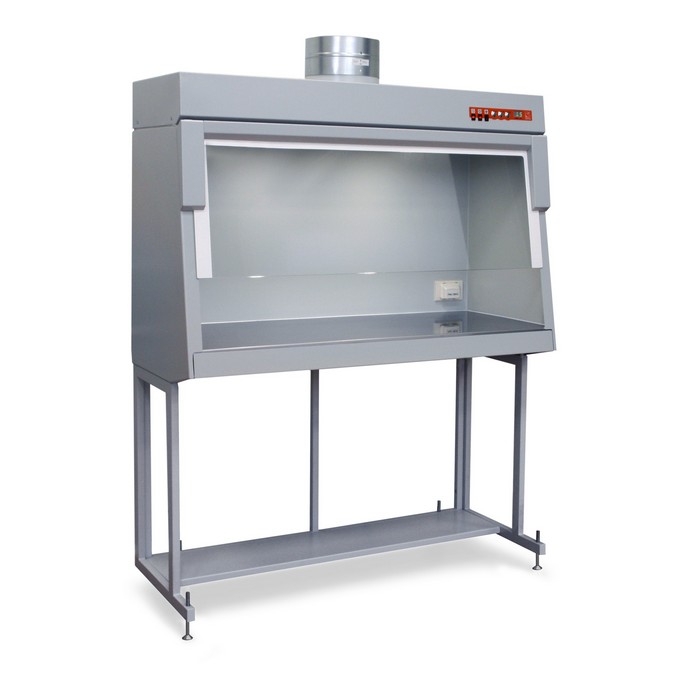

FUME HOOD SHV-1,3-“Laminar-S.”
SHV-1,3-“Laminar-S.” is designed for use in laboratories providing operator’s protection when working with chemically harmful materials and for their effective removal from the operating area.
Application of the Fume Hoods
- removes chemically harmful and low-toxic materials from the working zone providing operator’s protection in laboratories with different profiles;
-
Fume hoods are designed to be used as part of the external exhaust system in clinical, diagnostic, dental, and other laboratories, medical organizations, food production and other industries.
- Fume hoods are used for studies and works causing and spreading toxic vapors and gases harmful to human health and for work with materials that require quick elimination of accessory substances from the operating area.
-
Fume hoods are not to be used with hazardous and potentially hazardous pathogenic agents and microorganisms
FUME HOOD SHV-1,3-“Laminar-S.”
SHV-1,3-“Laminar-S.” is designed for use in laboratories providing operator’s protection when working with chemically harmful materials and for their effective removal from the operating area.
Application of the Fume Hoods
- removes chemically harmful and low-toxic materials from the working zone providing operator’s protection in laboratories with different profiles;
-
Fume hoods are designed to be used as part of the external exhaust system in clinical, diagnostic, dental, and other laboratories, medical organizations, food production and other industries.
- Fume hoods are used for studies and works causing and spreading toxic vapors and gases harmful to human health and for work with materials that require quick elimination of accessory substances from the operating area.
-
Fume hoods are not to be used with hazardous and potentially hazardous pathogenic agents and microorganisms
Main parameters and dimensions
FUME HOOD SHV-1,3-“Laminar-S.”
| Article | 1Е-E.002-13.0 |
| Dimensions of the assembled cabinet with stand, mm (WхDхH) | 1315х621х1920 |
| Dimensions of the work chamber, mm (WхDхH) | 1315х621х1120 |
| Mass of assembled cabinet with the stand, kg, not more than | 98 |
| Input power of the cabinet, W, not more than (exclusively of the load on the built-in outlets) | 100 |
| Input power of the fan, W, not more than | 31 |
| Maximum load allowed on the sockets, W | 1000 |
| Luminance level in the working zone, lux, not less than | 1000* |
| Airflow outflow volume, m3/hr, not less than | 500 |
* - integral value defined on the total surface of the work zone.

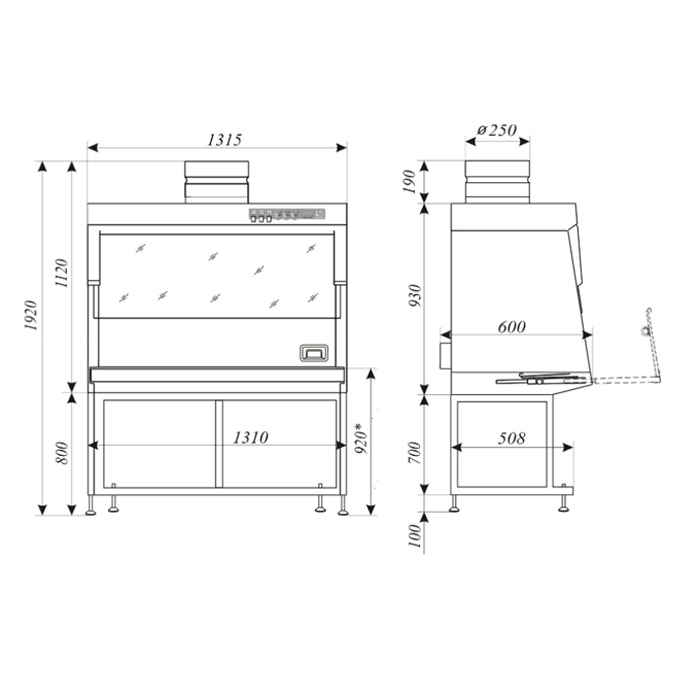

Dimensional drawing

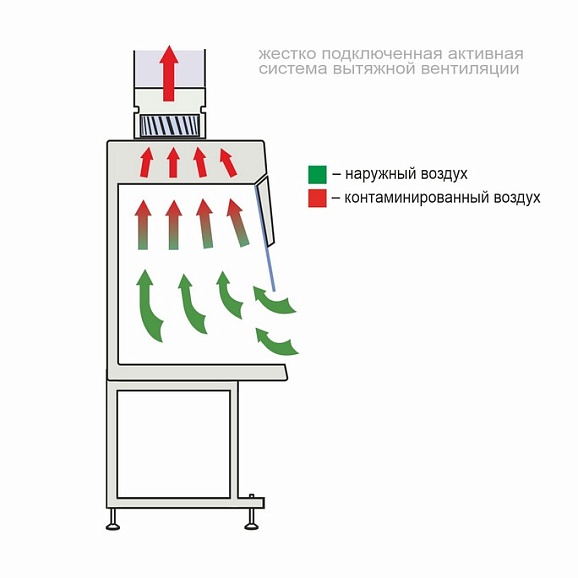

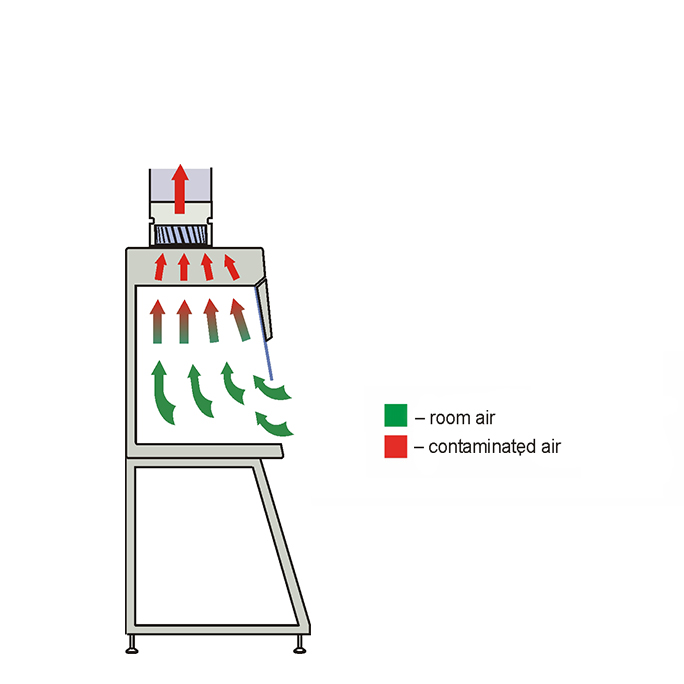

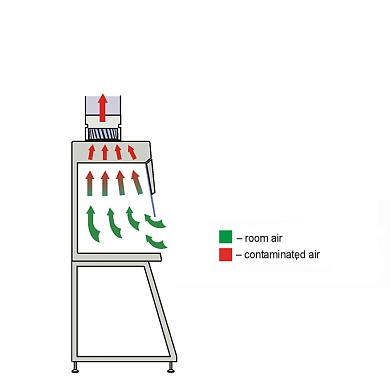

Air flow scheme
