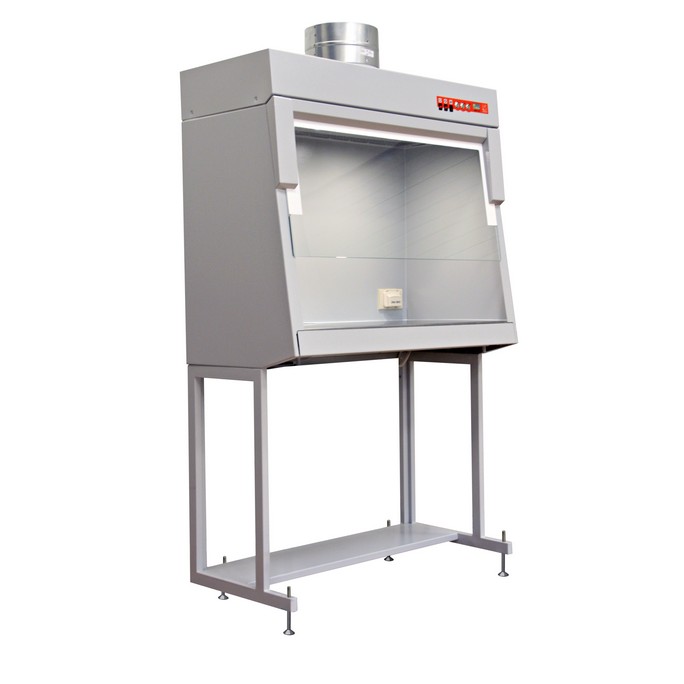

FUME HOOD SHV-1,0-“Laminar-S.” with UV unit
Article 1Е-E.002-10.0
SHV-1,0-“Laminar-S.” is designed for use in laboratories providing operator’s protection when working with chemically harmful materials and for their effective removal from the operating area.
Industry
Type of protection
Process
Fume hood is designed to be used as part of the external exhaust system in clinical, diagnostic, dental, and other laboratories, medical organizations, food production and other industries.
FUME HOOD SHV-1,0-“Laminar-S.” with UV unit
Article 1Е-E.002-10.0
SHV-1,0-“Laminar-S.” is designed for use in laboratories providing operator’s protection when working with chemically harmful materials and for their effective removal from the operating area.
Main parameters and dimensions
FUME HOOD SHV-1,0-“Laminar-S.” with UV unit
| Article | 1Е-E.002-10.0 |
| Dimensions of the assembled cabinet with stand, mm (WхDхH) | 1020х621х1920 |
| Dimensions of the work chamber, mm (WхDхH) | 1020х621х1120 |
| Mass of assembled cabinet with the stand, kg, not more than | 84 |
| Input power of the cabinet, W, not more than (exclusively of the load on the built-in outlets) | 90 |
| Input power of the fan, W, not more than | 31 |
| Maximum load allowed on the sockets, W | 1000 |
| Luminance level in the work zone, lux, not less than | 1000* |
| Airflow outflow volume, m3/hr, not less than | 400 |
| Noise level at the 1 m distance from the cabinet, dB, not more than | 55 |
* - integral value defined on the total surface of the work zone.

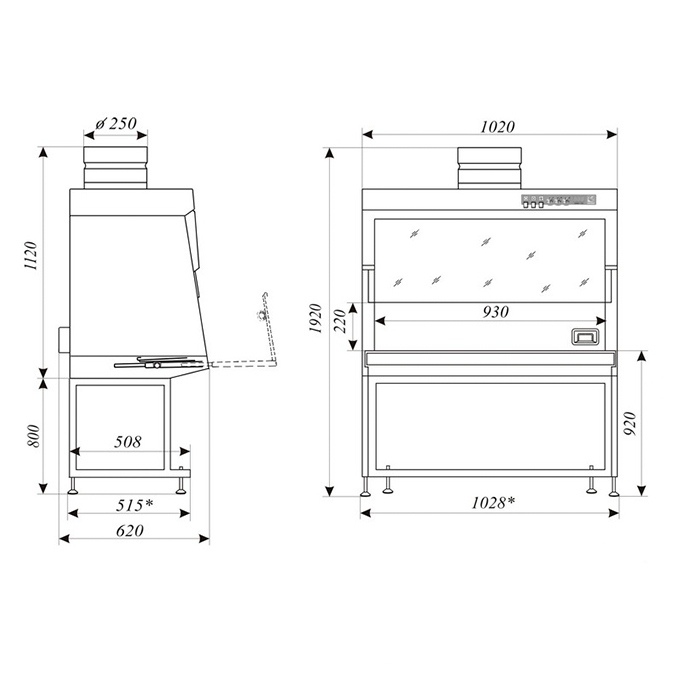

Dimensional drawing

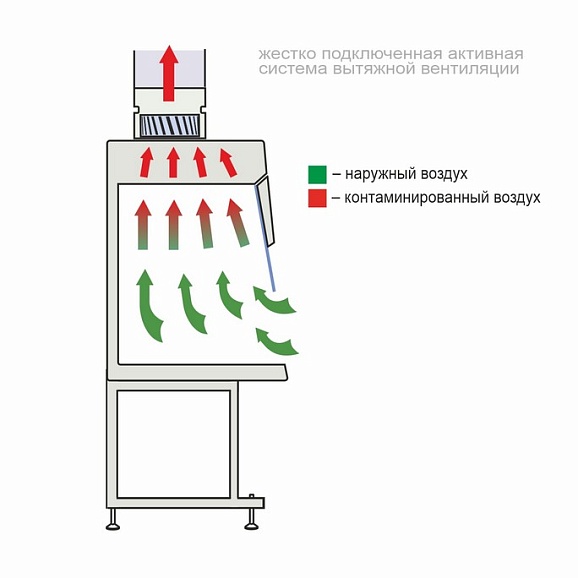

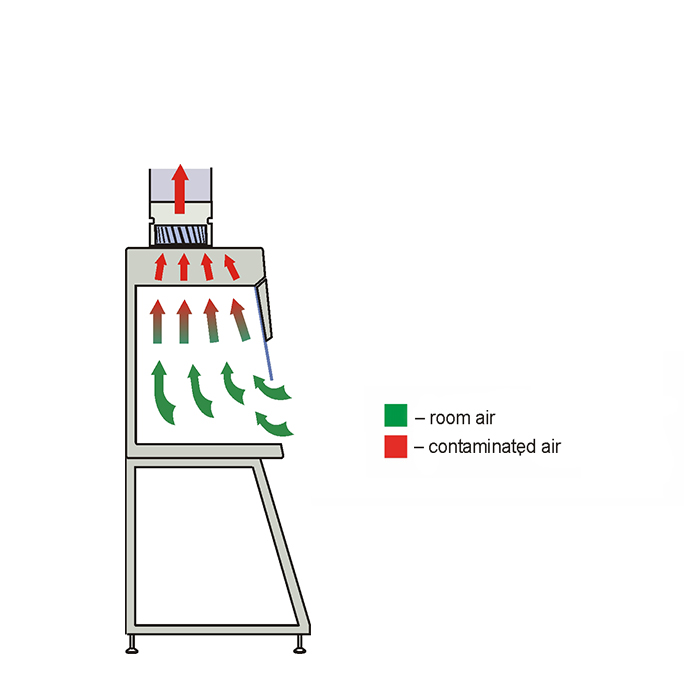

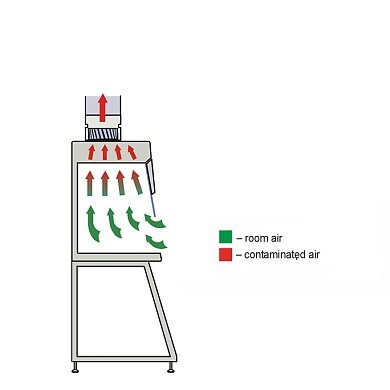

Air flow scheme
