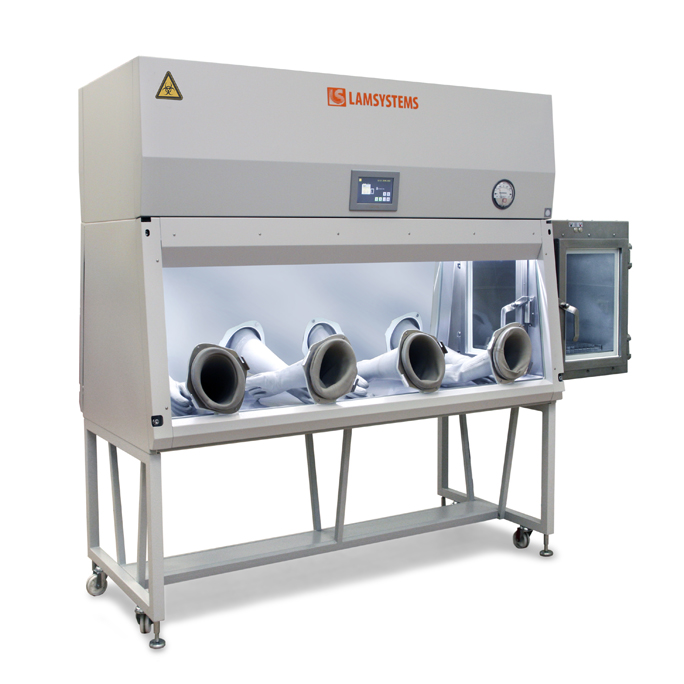

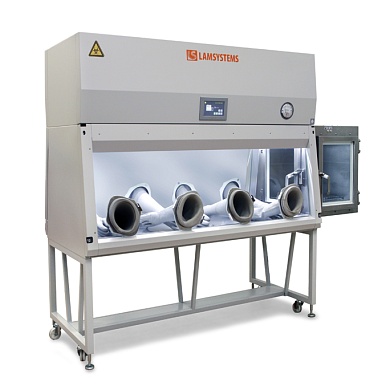

BMB-III-“Laminar-S”-1,8 PROTECT VIS-À-VIS Class III
The cabinet is designed for operators working simultaneously opposite one another.
The system of monitoring with the audio-visible indication system warns operator about the failure of working modes in the cabinet.
Application of the Biological Safety Cabinet Class III:
- Reduction of risk of infection of an operator working with airborne pathogenic agents and microorganisms, protection of the environment as well as the product from external contamination and cross-contamination
- Protection of an operator and environment from airborne infection when working with pathogenic biological agents (PBA) and microorganisms including highly (especially) hazardous pathogenic groups.
- Protection of the work agents inside the work chamber from external contamination.
Additional options
BMB-III-“Laminar-S”-1,8 PROTECT VIS-À-VIS Class III
The cabinet is designed for operators working simultaneously opposite one another.
The system of monitoring with the audio-visible indication system warns operator about the failure of working modes in the cabinet.
Application of the Biological Safety Cabinet Class III:
- Reduction of risk of infection of an operator working with airborne pathogenic agents and microorganisms, protection of the environment as well as the product from external contamination and cross-contamination
- Protection of an operator and environment from airborne infection when working with pathogenic biological agents (PBA) and microorganisms including highly (especially) hazardous pathogenic groups.
- Protection of the work agents inside the work chamber from external contamination.
Main parameters and dimensions
Microbiological safety cabinet BMB-III-“Laminar-S”-1,8 PROTECT VIS-À-VIS Class III
Main Parameters and Dimensions
| Article | 2E-C.002-18 |
| Maximum dimensions of the cabinet with pass box* /WхDхH/ (dimensions without stand are in parenthesis),mm | 2320х880х1940 |
| Dimensions of the work chamber /WхDхH/, мм | 1640х655х685 |
| Maximum net weight of the cabinet with stand,kg | 350 |
| Maximum input power without built-in electric sockets, W | 400 |
| Maximum input power,W | 460 |
| Maximum allowed load on the built-in electric sockets, W | 1000 |
| Air volume supplied to the work chamber of the cabinet, m3/h | 400-450 |
Main Characteristics
| Installation work chamber air cleanliness class for suspended particle (aerosol) concentration as per ISO 14644-1 | |
| - for particles of 0.5µm and more | ISO 5 |
| - for particles of 5.0µm and more | ISO M (20; ≥5µm); LSAPC |
| Class of the cabinet as per EN 12469, NSF/ANSI 49 | III |
| Class of the installed НЕРА-filters according to EN 1822-1 | H14 |
| Prefilter Class according to EN 779 | 250 |
| Illuminance level in the working zone, lux, not less than | 2000 |
| Minimal negative pressure in the working chamber, Pa, not less than | 200 |
| Permanently provided working negative pressure in the working chamber, Pa, not less than | 250 |
| Air inflow filtering | two-stage (G4, H14) |
| Air outflow filtering | two-stage (Н14, H14) |
| Maximum noise level at 1 m distance from the cabinet | 59 dB** |
| Air recirculation rate in the cabinet, % | no recirculation |
** level of noise measured as per DIN EN ISO 11201 in free sound field over the sound-reflecting surface (noise level in real operating environment depends on the dimensions of the operating site as well as on the total background noise and may vary by 3-4 dB(A)). Uncertainty coefficient: k = 2 dB.вука при измерении в существенно свободном звуковом поле над звукоотражающей плоскостью (уровень звука в реальных условиях эксплуатации зависит от размера помещения, расположения бокса и общего фонового шума и может изменяться в пределах 3-4 дБ(А)).

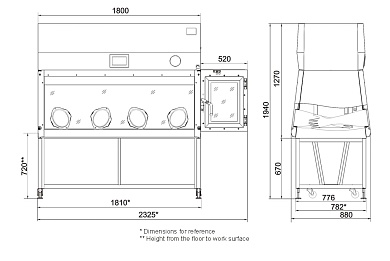

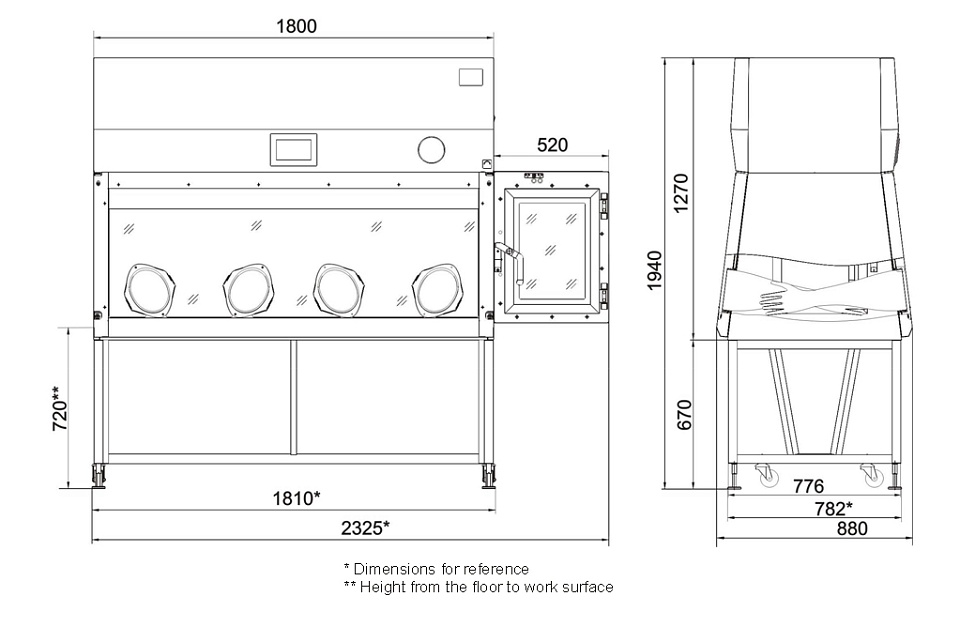

Dimensional drawing

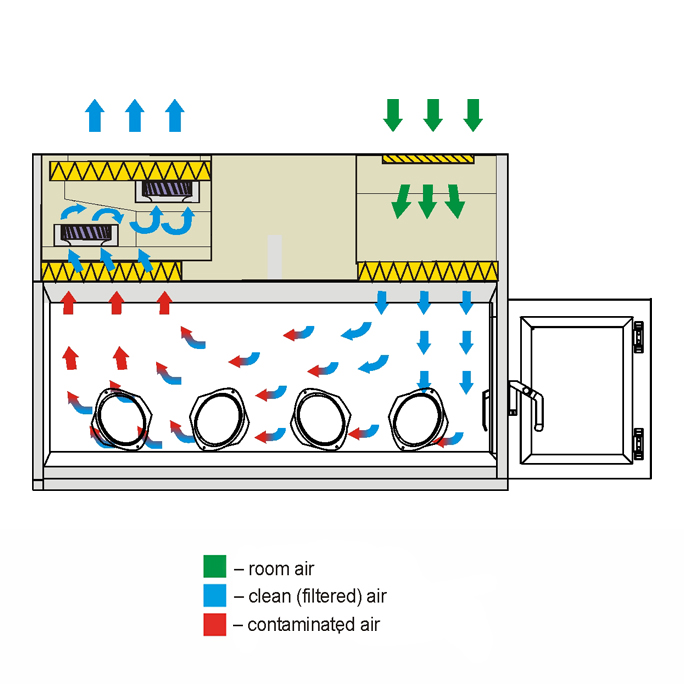

Air flow scheme
Standard Configuration
Work Chamber
- work chamber is made of stainless steel AISI 304;
- hinged front sashes made of laminated safety glass resistant to UV and disinfectants;
- each front window has four oval-shaped glove ports; the glove ports are featured with catches and guides for self-contained glove integrity testing module (not part of the delivery set; can be supplied as an additional option);
- each glove port is equipped with a chamber glove with silicon O-ring.
- liquid-collecting tray made of stainless steel AISI 304 without drain located in the bottom part of the work chamber;
- 2 LED lighting sets in the work chamber;
- two removable electric sockets in the work chamber (on the left side wall);
- UV light in the work chamber;
- pressure gauge from -500 Pa to +500 Pa.
Supply and Exhaust Air Filtration System
- two-stage filtration of the air coming into the work chamber: prefilter G4 and supply HEPA filter H14 located over the work chamber;
- two-stage filtration of the exhaust air coming out of the cabinet: two successive exhaust HEPA filters H14.
Pass Box
- outer panels of the pass box are made of powder-coated metal;
- inner chamber is leak-tight and made of stainless steel AISI 304;
- corner door location: the outer door in front of the cabinet, the inner door built into the side wall of the work chamber;
- pass box doors a equipped with handles made of stainless steel AISI 321;
- pass box doors are featured with electromechanical interlocks for preventing simultaneous opening of both of the doors;
- door windows are made of tempered glass;
- two UV lamps;
- LED lighting;
- pullout perforated tray made of stainless steel AISI 304 ensures simple transferring of objects from the pass box into the work chamber and UV irradiation of the bottom of the transferred materials.
Control System Components
- microprocessor control system;
- touchscreen control panel;
- pass box control panel is pushbutton with door and lock position indication;
- airflow sensors;
- built-in power cord;
- individual fuses for fans and removable electric sockets;
- power switch for the removable electric sockets installed in the work chamber.
Airflow Adjustment Components
- balance damper
Additional Components
- caster wheels for cabinet relocation;
- screw supports for cabinet fixation at operating site;
- frame stand with footrest;
- perforated protection cover of the exhaust HEPA filter;
HEPA Filter Testing
- built-in air-sampling outlets for testing the HEPA filters.
