Article 2E-C.002-12

The cabinet is designed for operators working simultaneously opposite one another.
The system of monitoring with the audio-visible indication system warns operator about the failure of working modes in the cabinet.

Application of the Biological Safety Cabinet Class III:

  • Reduction of risk of infection of an operator working with airborne pathogenic agents and microorganisms, protection of the environment as well as the product from external contamination and cross-contamination
  • Protection of an operator and environment from airborne infection when working with pathogenic biological agents (PBA) and microorganisms including highly (especially) hazardous pathogenic groups.
  • Protection of the work agents inside the work chamber from external contamination.
Version for print

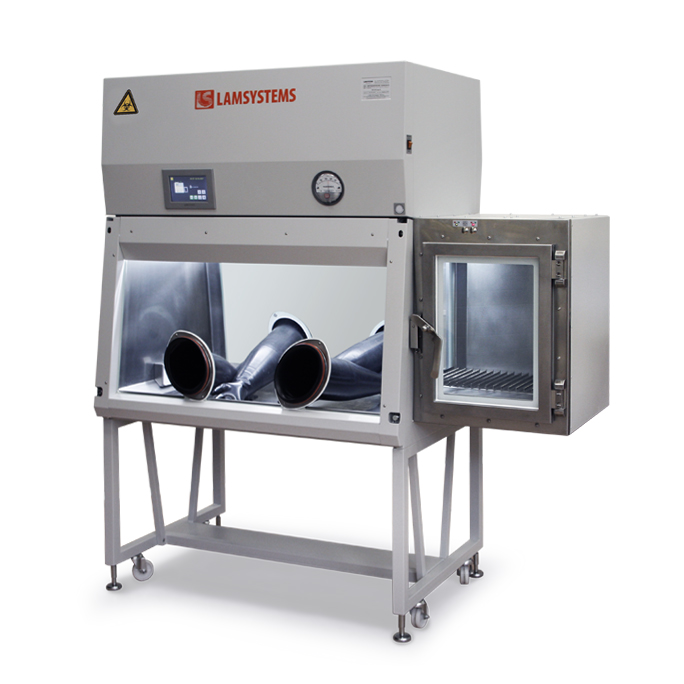

Microbiological safety cabinet BMB-III-“Laminar-S”-1,2 PROTECT VIS-À-VIS Class III

Main Parameters and Dimensions

Article 2E-C.002-12
Maximum dimensions of the cabinet with pass box* /WхDхH/ (dimensions without stand are in parenthesis),mm 1720х880х1940(1270)
Dimensions of the work chamber /WхDхH/, мм 1040х655х685
Maximum net weight of the cabinet with stand,kg 350
Maximum input power without built-in electric sockets, W 450
Maximum input power,W 1450

Main Characteristics

Installation work chamber air cleanliness class for suspended particle (aerosol) concentration as per ISO 14644-1
- for particles of 0.5µm and more ISO 5
- for particles of 5.0µm and more ISO M (20; ≥5µm); LSAPC
Class of the cabinet as per EN 12469, NSF/ANSI 49 III
Minimum negative pressure in the work chamber,Pa 200
Constantly maintained (operating) negative pressure in the work chamber,Pa 250
Supply air filtration Two-stage (G4, Н14)
Exhaust air filtration Two-stage (Н14, H14)
Minimum illumination of the work zone (integral value determined along the whole area of the work zone),lx 2000
Recirculation, % no recirculation
Maximum noise level at 1 m distance from the cabinet, dB 58*

*level of noise measured as per DIN EN ISO 11201 in free sound field over the sound-reflecting surface (noise level in real operating environment depends on the dimensions of the operating site as well as on the total background noise and may vary by 3-4 dB(A)). Uncertainty coefficient: k = 2 dB.

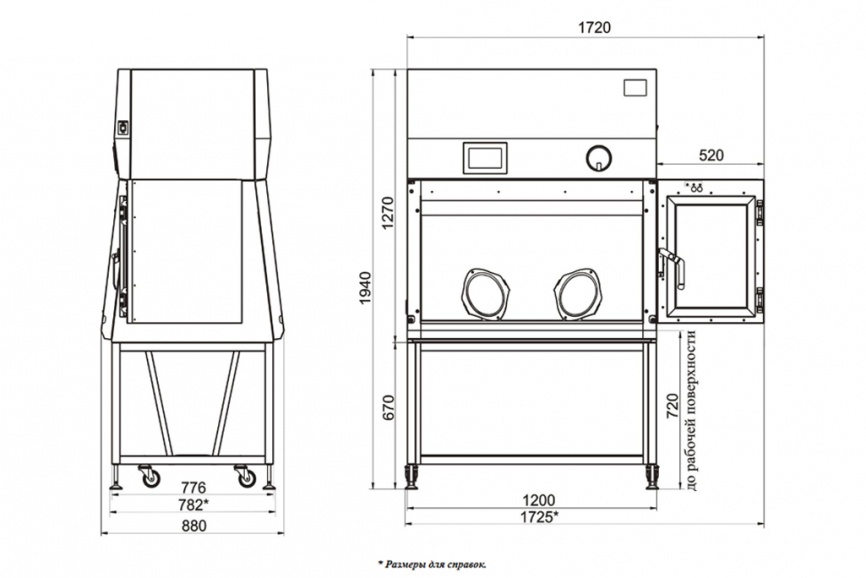

Dimensional drawing
Work Chamber

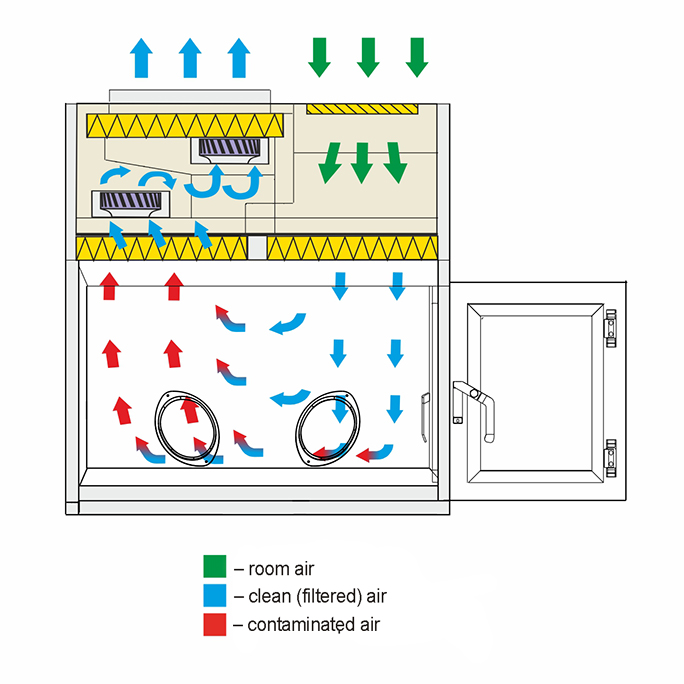

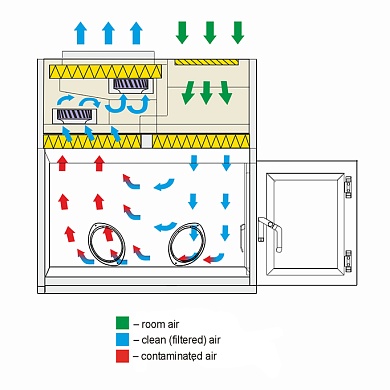

Supply and Exhaust Air Filtration System
Pass Box
Control System Components
Additional Components
HEPA Filter Testing
Cabinet is designed to equip workstations in the medical, pharmaceutical, and other institutes working with microorganisms of I-II-III-IV pathogenic groups and with parasitic disease agents.
