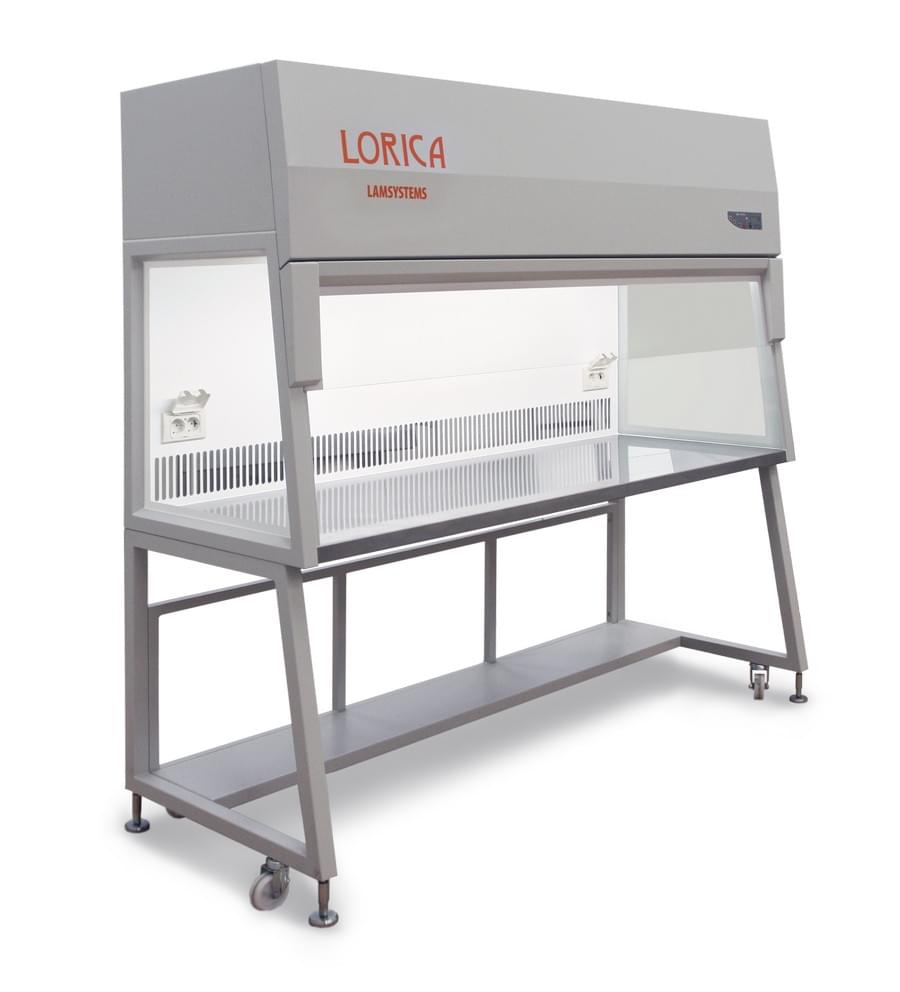

Laminar flow cabinet
BAVnp-01-Laminar-S-1.8 LORICA

Article 1Е-D.001-18.0

  Aur flow scheme

MAIN CHARACTERISTICS

Installation work chamber air cleanliness class for suspended particle (aerosol) concentration as per ISO 14644-1

-for particles of 0.5µm and more

-for particles of 5.0µm and more



 ISO 5

ISO M (20; ≥5µm); LSAPC

Class of the installed in the cabinet НЕРА-filters according to EN 1822-1

H14

Prefilter according to EN 779

G4

Average downflow velocity in the work chamber:

- preset velocity, mps

- recommended velocity range for customized setting that guarantees uniformity (laminarity) of the airflow, mps



0,4

0,25-0,5

Illuminance level in the working zone, lux, not less than

 1000

Noise level at 1m distance from the cabinet (at centerline of the work opening

with the front window sash at working position), dB, not more than

 55



MAIN PARAMETERS AND DIMENSIONS

Article

1Е-D.001-18.0

Dimensions of the assembled cabinet /WхDхH/, mm

1800х760х1870

Dimensions of the working chamber /WхDхH/, mm

1730х625х650

Mass of assembled cabinet with the stand, kg, not more than

206

Maximum input power of the cabinet, W, not more than (exclusively of the load on the built-in outlet unit)

590

Acceptable load on the built-in outlet unit, W, not more than

1000

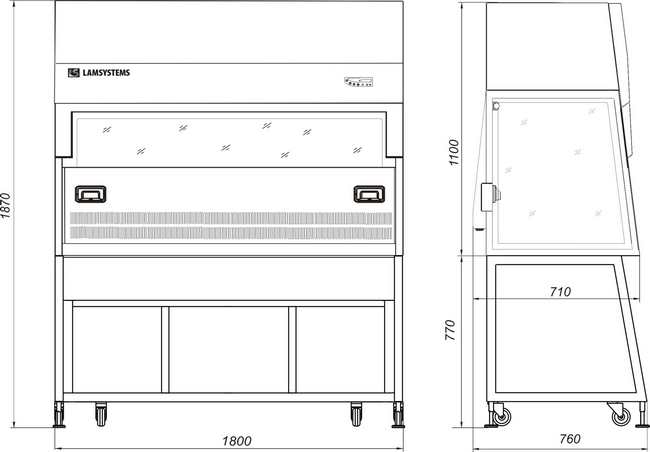

 DIMENSIONAL DRAWING

Dimensional drawing 410.180
