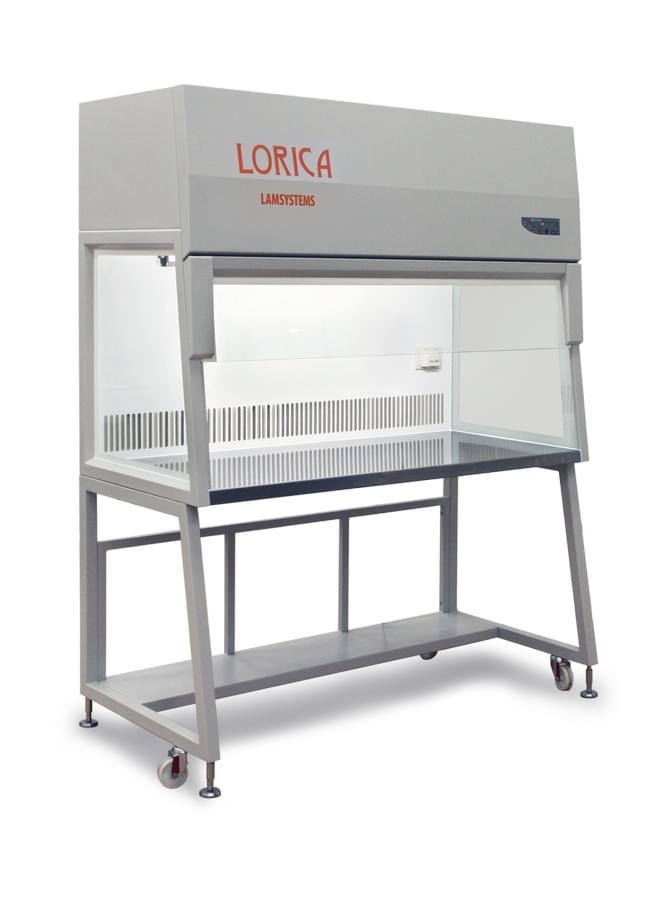

Vertical Laminar Flow Cabinet BAVnp-01-“Laminar-S.”-1,5 LORICA
Article 2E-D.001-15
Main parameters and dimensions
Vertical Laminar Flow Cabinet BAVnp-01-“Laminar-S.”-1,5 LORICA
| Article | 2E-D.001-15 |
| Dimensions of the assembled cabinet* /WхDхH/, mm | 1500x760x1870 |
| Dimensions of the working chamber /WхDхH/, mm | 1430x625x650 |
| Mass of assembled cabinet without the stand, kg, not more than | 164 |
| Maximum input power of the cabinet, W, not more than(exclusively of the load on the built-in outlet unit) | 410 |
| Acceptable load on the built-in outlet unit, W/А, not more than | 1000 |
MAIN CHARACTERISTICS
| Installation work chamber air cleanliness class for suspended particle (aerosol) concentration as per ISO 14644-1 | |
| -for particles of 0.5µm and more | ISO 5 |
| -for particles of 5.0µm and more | ISO M (20; ≥5µm); LSAPC |
| Class of the installed in the cabinet HEPA-filters according to EN 1822-1 | H14 |
| Prefilter according to EN 779 | G4 |
| Average downflow velocity in the work chamber: | |
| - preset velocity, mps | 0,4 |
| - recommended velocity range for customized setting that guarantees uniformity (laminarity) of the airflow, mps | 0,25-0,5 |
| Illuminance level in the working zone, lux, not less than | 1000 |
| Noise level at 1m distance from the cabinet (at centerline of the work openingwith the front window sash at working position), dB, not more than | 55** |
* dimensions do not account for outstanding supports
** level of noise in free sound field over the sound-reflecting surface (noise level in real operating environment depends on the dimensions of the operating site as well as and on the total background noise and may vary by 3-4 dB(A)) Dimensional drawing

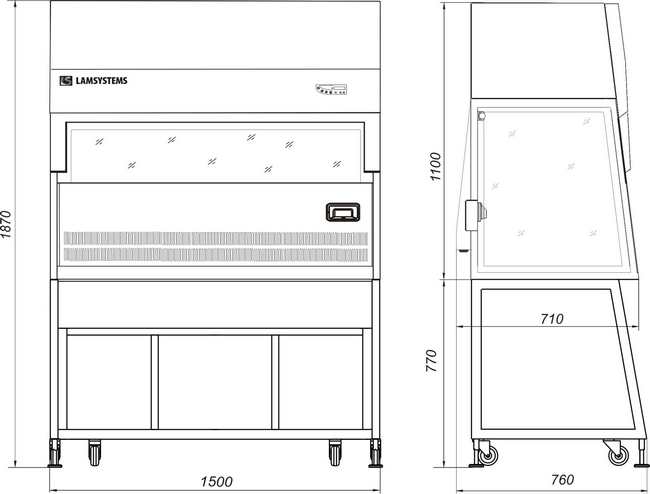

Dimensional drawing
Air flow scheme
Standard Configuration
Work Chamber:
- hinged front sash made of tempered glass; opening, closing and upholding is carried out by gas springs;
- damper against front window closing impact;
- side windows made of tempered glass;
- slanted front surface of the cabinet;
- LED lighting of the work chamber;
- one set of electric sockets in the work chamber (2 pcs. in the right part of the rear wall);
- airflow laminarization screen made of polymer micromesh;
- tabletop made of stainless steel (AISI 304);
- work opening screen for operator protection during UV light operation.
UV light:
- UV light is located is the upper part of the work chamber rear wall and is covered with a protective grille made of stainless steel;
Supply and Exhaust Air Filtration System:
- supply air coming into the work chamber is cleaned by preliminary filter G4 and supply HEPA filter H14;
- two fans ensuring air supply into the cabinet.
Control System Components
- microprocessor control system;
- pushbutton control panel with LCD screen;
- airflow sensors*;
- individual fuse for power supply to the main functions of the cabinet (fan, lighting, UV lamp);
- individual fuse for electric sockets of the work chamber;
- fixed power cord.
Testing Components
- built-in outlet for sampling the air from the high-pressure plenum under the G4 filter for HEPA filter integrity testing.
Stand:
- frame stand with footrest;
- caster wheels for cabinet relocation;
- screw supports for cabinet fixation at operating site.
Additional Components:
- allen key 6 mm.
