BMB-II-Laminar-S-0,9 NEOTERIC Class II, type A2

Article 1Е-В.001-09.0





Download brochure







Distinctive features







Video



WorkChamber

  • hinged front sash made of laminated safety glass; opening, closing and upholding is carried out by gas springs;
  • damper against front sash closing impact;
  • side windows made of tempered glass: with tap ports on the left, solid on the right;
  • slanted front surface of the cabinet;
  • work chamber lighting – fluorescent lamp;
  • two electric sockets in the work chamber (in the right part of the rear wall);
  • airflow laminarization screen made of polymer micromesh;
  • three-section tabletop made of mirror stainless steel (AISI 304);
  • work chamber tray made of stainless steel (AISI 304);
  • tabletop reinforcements (1 pcs.);
  • tabletop supports (2 pcs.);
  • removable armrest made of stainless steel (AISI 304)

UVUnit

  • pullout (when inoperative, is stored outside of the work chamber under the tabletop);
  • metal grille protecting the UV lamp;
  • dampers against any impact upon lowering the work opening screen.

Supply and Exhaust Air Filtration System

  • supply air coming into the work chamber is cleaned by supply HEPA filter H14;
  • exhaust air coming out of the cabinet is cleaned by exhaust HEPA filter H14;
  • one fan ensuring airflows inside the cabinet

Control System Components

  • microprocessor control system;
  • pushbutton control panel with LCD screen;
  • electromagnetic reader and electromagnetic access keys;
  • airflow sensors;
  • front sash and UV unit position sensors;
  • individual fuse for power supply to the main functions of the cabinet (fan, lighting, UV lamp);
  • individual fuse for electric sockets of the work chamber;
  • removable power cord with holder

Testing and Adjusting Components:

  • exhaust opening balancing baffle for airflow adjustment;
  • built-in outlet for sampling the air upstream of HEPA filters for their integrity testing.

Stand

  •  frame stand with footrest;
  •  caster wheels for cabinet relocation;
  •  screw supports for cabinet fixation at operating site.



MAIN CHARACTERISTICS

Installation work chamber air cleanliness class for suspended particle (aerosol) concentration as per ISO 14644-1

-for particles of 0.5µm and more

-for particles of 5.0µm and more



ISO 5

ISO M (20; ≥5µm); LSAPC

Cabinet class according to ЕN 12469-2010, NSF/ANSI 49

II

Cabinet type according to NSF/ANSI 49

A2

Class of the installed НЕРА-filters according to EN 1822-1

H14

Average velocity of the inflow though the work opening, m/s

0,47±0,03

Average downflow velocity in the working chamber, m/s

0,35+0,01

Illuminance level in the working zone, lux, not less than

1000

Air recirculation rate in the cabinet, %

≈70

 MAIN PARAMETERS AND DIMENSIONS

Article

Article 1Е-В.001-09.0

Dimensions of the cabinet with the stand in assembly (WxDxH)*, mm

1000х770х2150

Maximum dimensions of the stand /WхDхH/*

995х720х670

Dimensions of the working chamber (WxDxH), mm

905x610x750

Weight of the cabinet with the stand in assembly (net), kg, not more than

196

Maximum power consumption (without the built-in outlets load), W, not more than

180/100**

Total acceptable load on the built-in outlets, W, not more than

1000

Air volume supplied to the working chamber, m3/h

656-674



59***



* dimensions do not account for outstanding supports

  ** The power consumption with newly installed uncontaminated HEPA filters.

***level of noise in free sound field over the sound-reflecting surface (noise level in real operating environment depends on the dimensions of the operating site as well as on the total background noise and may vary by 3-4 dB(A))



  • The air flow in the working chamber – vertical downward unidirectional (laminar).
  • The air flow in the front opening – directed into the front table grille, creating an air curtain.
  • There is no risk of plenum contamination (the internal high pressure plenum is completely surrounded by low pressure zones)

ADDITIONAL OPTIONS

  • multi-purpose taps
  • extra outlets
  • ULPA-filters
  • LED lighting of the working chamber
  • Exhaust hood to connect the cabinet to external exhaust system

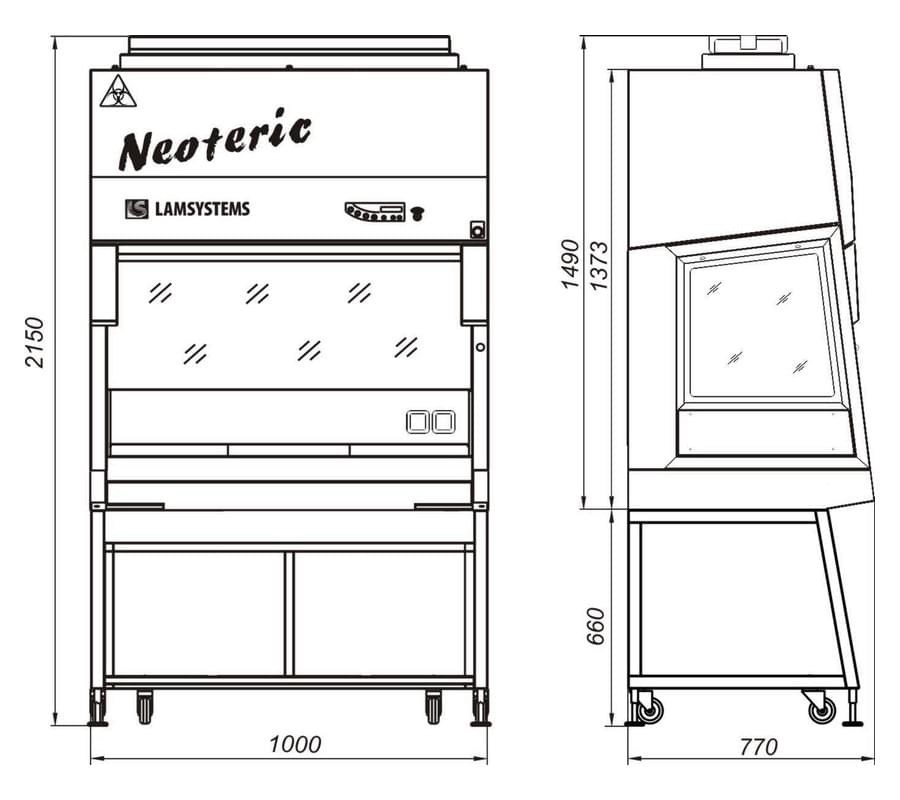

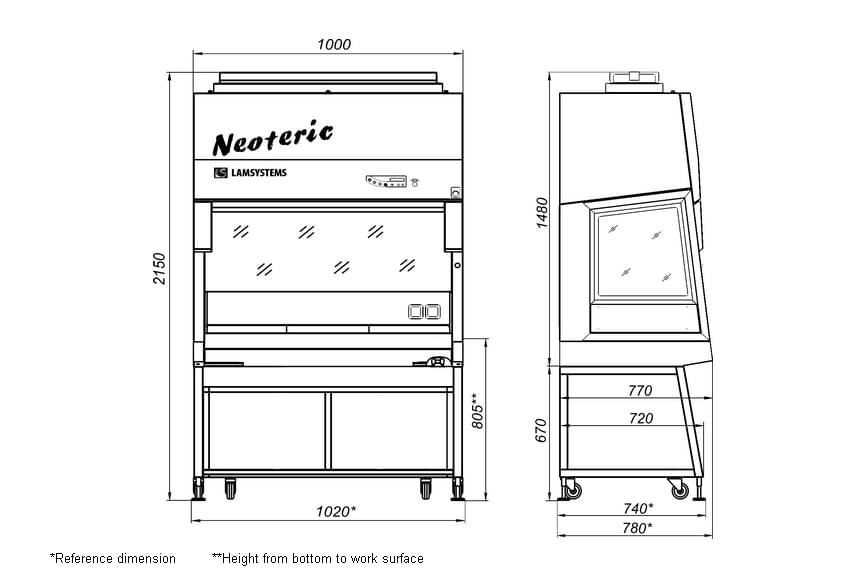

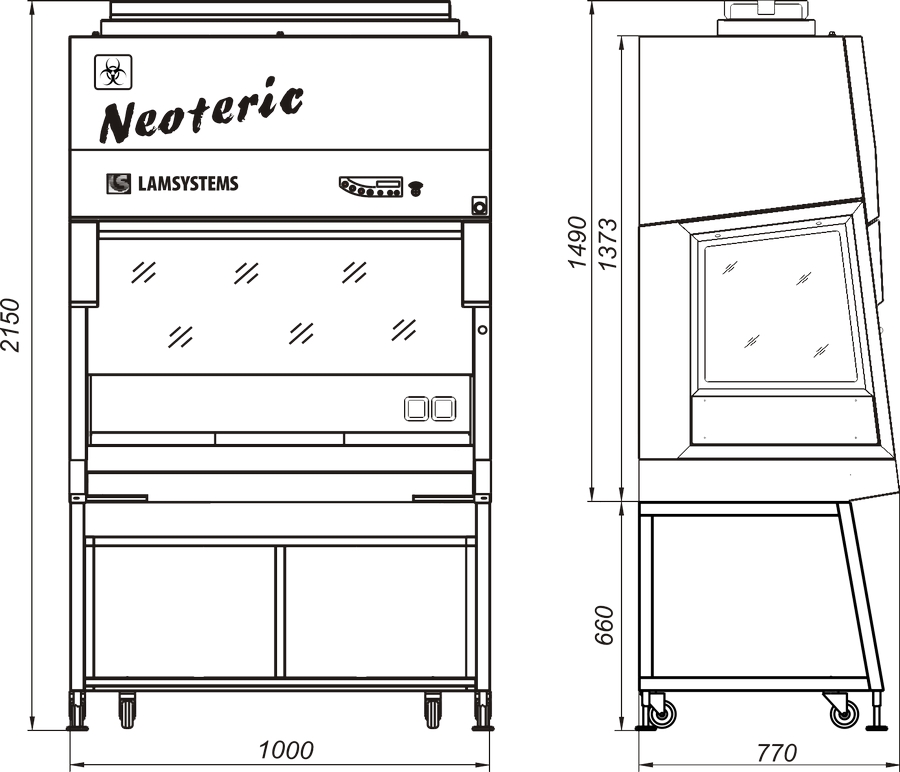

DIMENSION DRAWING
