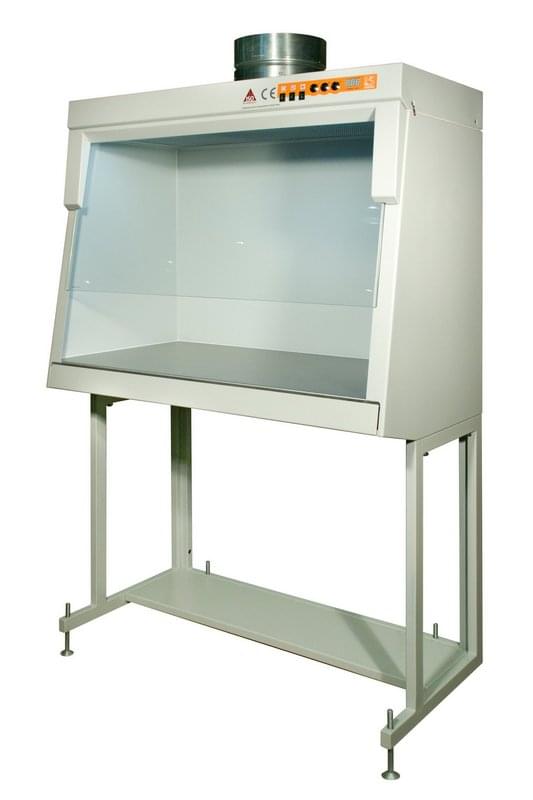

SHV-1,0-“Laminar-S.” (520.100)



Fume hood 520.150
  Fume hood
 SHV-1,0-“Laminar-S.” (520.100)

шкаф вытяжной - схема воздушных потоков шкафа вытяжного
Air flow scheme


Fume hood SHV-1,0-“Laminar-S.” is designed for use in laboratories providing operator’s protection when working with chemically harmful materials and for their effective removal.

Application of the Fume Hoods

  • Removes chemically harmful and low-toxic materials from the working zone providing operator’s protection in laboratories with different profiles .
  • Fume hoods are designed to be used as part of the external exhaust system in clinical, diagnostic, dental, and other laboratories, medical organizations, food production and other industries.
  • Fume hoods are used for studies and works causing and spreading toxic vapors and gases harmful to human health and for work with materials that require quick elimination of accessory substances from the operating area.
  • Fume hoods are not to be used with hazardous and potentially hazardous pathogenic agents and microorganisms.





Distinctive Features

  • All-metal frame;
  • Stainless steel tabletop;
  • Adjustable stand allows to horizontally level the work surface;
  • Illumination lamp with protection screen located inside the working chamber;
  • Electrical sockets inside the cabinet for connection of additional tools;
  • All metal surfaces powder coated and  resistant to disinfectants;
  • Built in vent fan;
  • Slanted front sash made of tempered glass can be fixed in two positions;
  • Back-pressure valve prevents air from flowing back into the chamber;
  • Flange adapter for connection to the external exhaust system,  diameter 250mm;
  • Tabletop can be produced from tempered glass (optional);

Main Parameters and Characteristics of SHV-1,0-“Laminar-S.” (520.100)

Dimensions of the assembled cabinet with stand, mm (WхDхH) 1020х600х1920
Dimensions of the work chamber, mm (WхDхH) 1015х535х675
Mass of assembled cabinet with the stand, kg, not more than 84
Input power of the cabinet, W, not more than (exclusively of the load on the built-in outlets) 75
Input power of the fan, W, not more than 31
Maximum load allowed on the sockets, W 1000
Luminance level in the working zone, lux, not less than 1000*
Airflow outflow volume, m3/hr, not less than  400
 Noise level at the 1 m distance from the cabinet, dB, not more than  55

* -  integral value defined on the total surface of the work zone.

Additional Options

  • gas tap without electromagnetic valve
  • vacuum tap without electromagnetic valve
  • additional set of sockets (installed on the left side)
  • stainless steel sink 165х288х120 together with drain valve and mixer tap (0.05.1) (installed on the left side)
  • stainless steel sink 165х288х120 together with drain valve and mixer tap (0.05.1) (installed on the right side)
  • mixer tap for water supply (hot/cold)
  • tap for water supply (brass) (model 11080.1)
  • cabinet base with an air vent (together with the fume hood)/(in a separate package)
  • tabletop «Polystone»-1,0

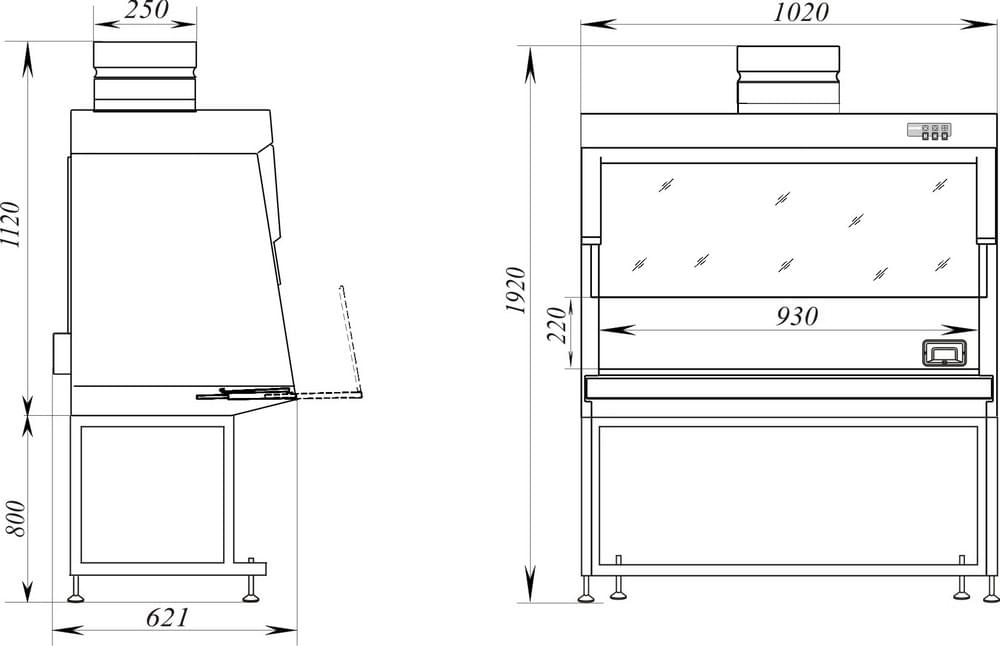

Dimensional Drawing of SHV-1,0-“Laminar-S.” (520.100)

Габаритный чертеж вытяжного шкафа код 520.100
