SHV-1,5-“Laminar-S.” (510.150)

Fume hood 510.150
  Fume Hood
  SHV-1,5-“Laminar-S.” (code 510.150)

шкаф вытяжной - схема воздушных потоков шкафа вытяжного
Air Flow Scheme



Fume Hood SHV-1,5-“Laminar-S.” removes chemically harmful and low-toxic materials from the working zone providing operator’s protection in laboratories with different profiles.

Application

  • Fume hoods are designed for integrated use with an external exhaust system.
  • Fume hoods are used for research and other works connected with generation and expansion of low-toxic fumes and gases hazardous to the human health, for work with substances that require active removal of incidental products from the working zone.
  • Fume Hoods are not designed for work with hazardous and potentially hazardous pathogenic agents and microorganisms.

Main Features

  • All-metal frame;
  • Adjustable stand allows to horizontally level the work surface;
  • Illumination lamp with protection screen located inside the working chamber;
  • Electrical sockets inside the cabinet for connection of additional tools;
  • All metal surfaces powder coated and  resistant to disinfectants;
  • Front window – tempered glass, can be fixed in two positions;
  • Back-pressure valve prevents air from flowing back into the chamber;
  • Flange adapter for connection to the external exhaust system,  diameter 250mm;
  • Side surfaces of the chamber are made from tempered glass.



Main parameters and Dimensions of SHV-1,5-“Laminar-S.” (code 510.150)

Dimensions of the assembled cabinet with stand, mm (WхDхH) 1470х685х1785
Dimensions of the work chamber, mm (WхDхH) 1405х620х670
Mass of assembled cabinet with the stand, kg, not more than 126
Input power of the cabinet, W, not more than (exclusively of the load on the built-in outlets) 75
Input power of the fan, W, not more than 31
Maximum load allowed on the sockets, W 1000
Luminance level in the working zone, lux, not less than 1000
Airflow outflow volume, m3/hr, not less than  450*

* - * Connection to the active exhaust system with efficiency not less than 885 m3/h is required to maintain average inflow speed not less than 0,5 m/s

Additional Options

  • gas tap without electromagnetic valve
  • vacuum tap without electromagnetic valve
  • additional set of sockets (installed on the left side)
  • stainless steel sink 165х288х120 together with drain valve and mixer tap (0.05.1) (installed on the left side)
  • stainless steel sink 165х288х120 together with drain valve and mixer tap (0.05.1) (installed on the right side)
  • mixer tap for water supply (hot/cold)
  • tap for water supply (brass) (model 11080.1)
  • cabinet base with an air vent (together with the fume hood)/(in a separate package)
  • tabletop «Polystone»-1,5
  • tabletop DURCON

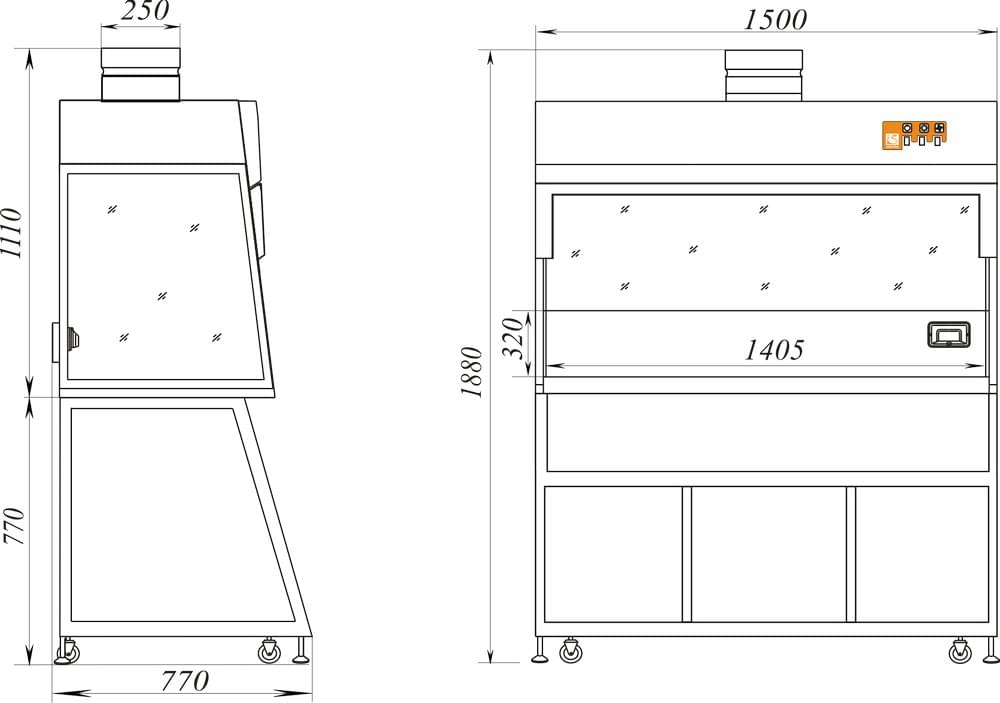

 Dimensional Drawing of SHV-1,5-“Laminar-S.” (510.150)

Fume hood 510.150
