Fume Hood SHV-1,5-“Laminar-S.” is designed for environment and operator protection when working with hazardous substances.

Application of the fume hoods

  • Removes chemically harmful and low-toxic materials from the working zone providing operator’s protection in laboratories with different profiles;
  • Fume hoods are designed to be used as part of the external exhaust system in clinical, diagnostic, dental, and other laboratories, medical organizations, food production and other industries.
  • Fume hoods are used for studies and works causing and spreading toxic vapors and gases harmful to human health and for work with materials that require quick elimination of accessory substances from the operating area.
  • Fume hoods are not to be used with hazardous and potentially hazardous pathogenic agents and

Main features

Work Chamber:

  • Front sash is hinged, made of tempered glass; opening/closing mechanism is gas springs;
  • Metal side walls;
  • Luminance of the work chamber;
  • Sockets unit inside the work chamber;
  • Stainless steel tabletop

UV-unit

  • UV unit located on the rear wall of the work chamber

Air exhaust elements

  • Auxiliary blower;
  • Back-flow valve with connecting flange to the exhaust system Ø 250 mm;
  • Goffered metal hose Ø 250 mm, length 3 meters;
  • 2 quick-release pipe bridges for metal hose attachment.

Control system elements

  • Highlighted keyswitch for switching on/off the power to the cabinet, for switching on/off the lighting, for switching on/off the fan.
  • UV control unit is equipped with anti-vandal buttons and timer with display with seven segments.

Support

  • Frame stand is equipped with foot rest;
  • Transporting wheels are designed for moving the cabinet with the stand;
  • Screw supports are designed for stationary placement of the cabinet at the exploitation sight.

Main Parameters and Dimensions of the SHV-1,5-“Laminar-S.”

Product code 530.150
Dimensions of the assembled cabinet with stand, mm (WхDхH) 1470х685х1785
Dimensions of the work chamber, mm (WхDхH) 1405х620х670
Mass of assembled cabinet with the stand, kg, not more than 126
Input power of the cabinet, W, not more than (exclusively of the load on the built-in outlets)  105
Input power of the fan, W, not more than 31
Maximum load allowed on the sockets, W 1000
Luminance level in the working zone, lux, not less than 1000
Noise level at the 1 m distance from the cabinet, dB, not more than 55
Airflow outflow volume, m3/hr, not less than  450 *

 * For maintenance of the average speed of the air inflow through the work opening on the level not less than 0.5 m/s the cabinet must be connected to the active exhaust system with a flow rate production not less than 885 m3/h.

 Additional options

  • Gas tap without electromagnetic valve
  • Vacuum tap without electromagnetic valve
  • Additional set of sockets (installed on the left side)
  • Stainless steel sink 165х288х120 together with drain valve and mixer tap (0.05.1) (installed on the left side)
  • Stainless steel sink 165х288х120 together with drain valve and mixer tap (0.05.1) (installed on the right side)
  • Mixer tap for water supply (hot/cold)
  • Tap for water supply (brass)
  • Cabinet base with an air vent (together with the fume hood)/(in a separate package)
  • Tabletop “Polystone”-1,5
  • Tabletop DURCON

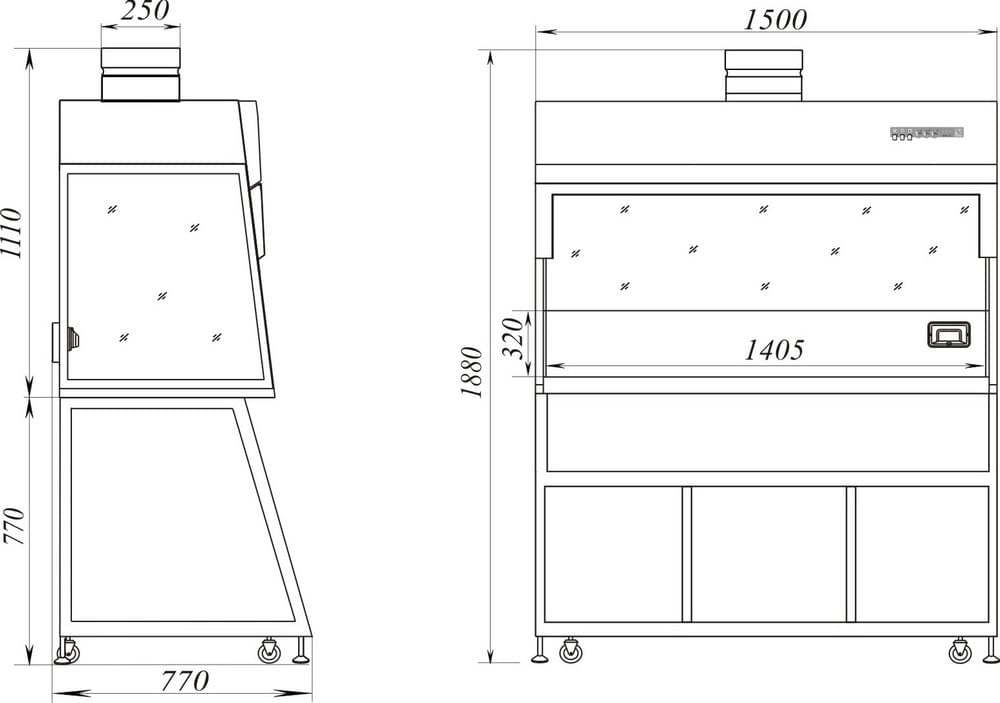

 Dimensional drawing of the SHV-1,5-“Laminar-S.”
