BMB-III-Laminar-S PROTECT

Article 1Е-С.001-12.0Class III PROTECTClass III PROTECT



The model design allows using those cabinets for work with deadly bacteria and viruses.

If connected to the individual active exhaust system, the cabinet could be used for protection from small amounts of toxic chemical substances and radionuclides.

The system of monitoring with the audio-visible indication system warns operator about the failure of working modes in the cabinet.





 Key Benefits

  • The cabinet has a sealed PASS-THROUGH SLUICE GATE made of stainless steel.
  • A PULL OUT SLUICE TABLE TOP makes loading objects into the working chamber easier.
  • FRONT SASH can be lifted for equipment loading. It is made of laminated safety glass and equipped with two oval glove ports.
  • REMOVABLE OUTLET UNIT in the working chamber with self-powered shutoff function.
  • The design of the cabinet allows integrating several cabinets in one line for continuous technological process.



Application of the Biological Safety Cabinet Class III:

  • Protection of an operator and environment from airborne infection when working with pathogenic biological agents (PBA) and microorganisms including highly (especially) hazardous pathogenic groups.
  • Protection of the work agents inside the work chamber from external contamination.
  • If connected to the individual active exhaust system, cabinet can be used for work with toxic chemical substances and radio nuclides in low quantities and for odor removal from the work agents.
  • Cabinet is designed to equip workstations in the medical, pharmaceutical, and other institutes working with microorganisms of I-II-III-IV pathogenic groups and with parasitic disease agents



Main Features

Chamber

  • The work chamber made of 1.5 mm stainless steel;
  •  Front sash can be lifted for equipment loading. It is made of triplex and is supplied with two glove ports. Sash is resistant to UV-light and disinfectant solutions.
  • Each glove port is equipped with a butyl chamber glove and a silicon sealing O-ring. Features of the gloves: high impermeability (water, gas, vapor), used at wide temperature range, resistant to solvents and high-concentration acids, used for medical, pharmaceutical, chemical and biotechnological research.
  • Ten liter liquid gathering tray without draining neck is located in the bottom of the chamber.
  • two work chamber LED lighting units;
  • Removable electrical sockets in the work chamber (on the left side wall);
  • UV light inside the chamber;
  • Pressure gauge of -500 Pa to +500 Pa .

Purification System of Supplied and Exhausted Air

  • Filtering system of the air supplied to the chamber has two steps: preliminary coarse filter G4  and plenum НЕРА-filter Н14 located above the work chamber;
  • Two-step filtering system of the air exhausted from the work chamber is executed through two consecutive HEPA filters Н14;
  • Supply and exhaust filtering module for removal of the air from the chamber is supplied with two fans.

Pass Box

  • Outer panels of the pass box are made of metal covered with powder enamell;
  • Inner chamber is leak-tight and made of 1.5 mm stainless steel;
  • Angular door location: outer door is in front, inner door is built into the side wall of the work chamber;
  • The doors of the pass box are equipped with latch handle made of 5 mm stainless steel;
  • The doors of the pass box are featured with electromechanical handle locks preventing simultaneous opening of both of the doors ;
  • Windows of the pass box are made of tempered glass.
  • LED lighting of the pas box;
  • UV light;
  • Pullout tray made of stainless steel ensuring easy transferring of the objects from the pass box into the work chamber;

Control System

  • Microprocessor control system of the electroautomatics;
  • Cabinet’s control unit is a  touchscreen;
  • Sluice control unit is a button box with indication of sluice’s doors and locks statuses;
  • Air balance parameters sensors;
  • Built-in power cord;
  • Separate safety devices for fans and removable sockets;
  • Switch for removable sockets unit installed in the work chamber

Control Elements of Air Flow Parameters

  • Built-in air-sampling outlets for testing the HEPA filter integrity

Class III biosafety cabinet options

  • self-contained module for testing the glove integrity



MAIN CHARACTERISTICS

Air cleanliness class in the working chamber of the cabinet in terms of concentration of airborne particles (aerosols) according to ISO 14644-1

ISO
Cabinet class according to ЕN 12469, NSF/ANSI 49 III
Class of the installed НЕРА-filters according to EN 1822-1 H14
Prefilter Class according to EN 779 G4
Minimal negative pressure in the working chamber, Pa, not less than  200

Air inflow filtering
Air outflow filtering

two-stage (G4, H14)
two-stage (Н14, H14)
Air recirculation rate in the cabinet, % no recirculation

MAIN PARAMETERS AND DIMENSIONS

BMB-III-"Laminar-S" Protect

Article 1Е-С.001-12.0

Dimensions of the cabinet with the stand in assembly (WxDxH), mm

1720х750х1940
Dimensions of the working chamber (WxDxH), mm 1140х640х675
Weight of the cabinet with the stand in assembly (net), kg, not more than 350
Power consumption (without the built-in outlets load), W, not more than 420
Maximum input power of the cabinet, W 1420
Airflow rate through the supply HEPA filter, m3/h, not less than 270-320
Illuminance level in the working zone, lux, not less than 1500

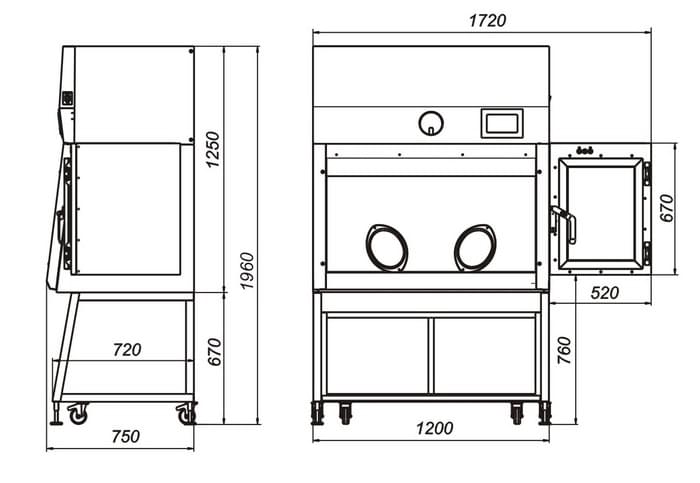

DIMENSION DRAWING of the BMB-III-"Laminar-S" Protect (Article 1Е-С.001-12.0)



The cabinet  for operators working simultaneously opposite one another
