BMB-II-Laminar-S-1,8 NEOTERIC

Article 1Е-В.001-18.0





Biosafety cabinet class II




     Download        Video















Application

  • Physical isolation (containment and controlled removal from the work zone) of pathogenic biological agents (PBA) and microorganisms to prevent airborne infection of the staff and contamination of the air in the work room and laboratory environment;
  • Minimization of risk of contamination and cross-contamination of the product;
  • The cabinet neither protects from toxic chemicals and radionuclides nor contains work agent odors;
  • Possibility to work with small amount of toxic chemicals and radionuclides as well as to remove work agent odors in case of mandatory connection to an active exhaust system using an exhaust hood supplied upon customer’s additional request;
  • The cabinet is used to equip individual work places in medical, pharmaceutical and other institutions working with pathogenic biological agents and microorganisms.

Standard Configuration

Work Chamber

  • hinged front sash made of laminated safety glass; opening, closing and upholding is carried out by gas springs;
  • damper against front sash closing impact;
  • side windows made of tempered glass;
  • slanted front surface of the cabinet;
  • work chamber lighting;
  • four electric sockets in the work chamber (in the right part of the rear wall);
  • airflow laminarization screen made of polymer micromesh;
  • three-section tabletop made of 1.5 mm mirror stainless steel (AISI 304);
  • work chamber tray made of 0.8 mm stainless steel (AISI 304);
  • tabletop reinforcements (3 pcs.);
  • tabletop supports (2 pcs.);
  • two removable armrests made of 0.8 mm stainless steel (AISI 304).

UV Unit

  • pullout (when inoperative, is stored outside of the work chamber under the tabletop);
  • metal grille protecting the UV lamp;
  • dampers against any impact upon lowering the work opening screen.

Supply and Exhaust Air Filtration System

  • supply air coming into the work chamber is cleaned by two supply HEPA filters H14;
  • exhaust air coming out of the cabinet is cleaned by exhaust HEPA filter H14;
  • three fans ensuring airflows inside the cabinet.

Control System Components

  • microprocessor control system;
  • pushbutton control panel with LCD screen;
  • electromagnetic reader and electromagnetic access keys;
  • airflow sensors;
  • front sash and UV unit position sensors;
  • individual fuse for power supply to the main functions of the cabinet (fan, lighting, UV lamp);
  • individual fuse for electric sockets of the work chamber;
  • fixed power cord (built into the base of the cabinet).

Testing and Adjusting Components

  • built-in outlets for sampling the air upstream of HEPA filters for their integrity testing.

Stand

  •  frame stand with footrest;
  •  caster wheels for cabinet relocation;
  •  screw supports for cabinet fixation at operating site.



MAIN CHARACTERISTICS

Work chamber air cleanliness class for suspended particle (aerosol) concentration as per ISO 14644-1

 Class 5

Class of the cabinet as per EN 12469, NSF/ANSI 49

II

Type of the cabinet as per NSF/ANSI 49

A2

Class of HEPA filters as per EN 1822-1

H14

Average velocity of the inflow though the working opening, mps

0,47±0,03

Average downflow velocity in the work chamber, mps

0,35+0,01

Minimum illumination of the work zone (integral value determined along the whole area of the work zone), lux

    1000

Air recirculation, %

≈70

 MAIN PARAMETERS AND DIMENSIONS

Article

1Е-В.001-18.0

Dimensions of the cabinet assembled with stand, mm

 1800х770х2095

Dimensions of the work chamber (WxDxH), mm

1705х610х750

Dimensions of the cabinet assembled with stand and exhaust hood* /WхDхH/,mm

1800х770х2175

Maximum net weight of the cabinet assembled with stand, kg

300

Maximum input power without built-in electric sockets, W

 590/150**

Maximum allowed load on the built-in electric sockets, W

1000

Clean air inflow capacity, m3/h

1210-1245

Exhaust air capacity, m3/h

510-580



* Exhaust hood is not part of the standard delivery set; can be supplied as per customer’s additional request.

** The power consumption with newly installed uncontaminated HEPA filters.

  • The air flow in the working chamber – vertical downward unidirectional (laminar).
  • The air flow in the front opening – directed into the front table grille, creating an air curtain.
  • There is no risk of plenum contamination (the internal high pressure plenum is completely surrounded by low pressure zones)

ADDITIONAL OPTIONS

  • multi-purpose taps;
  • extra outlets;
  • ULPA-filters;
  • LED lighting of the working chamber;
  • Exhaust hood to connect the cabinet to external exhaust system.

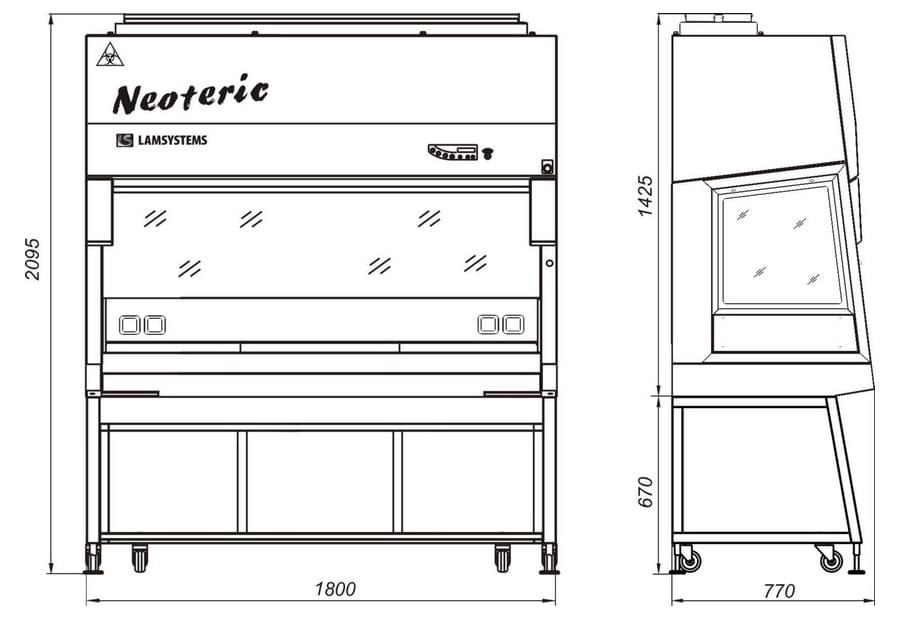

DIMENSION DRAWING
